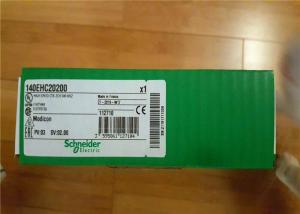

Modicon Schneider 140EHC20200 TSX Quantum High Speed Counter Used CSQ

Series

Modicon Quantum

Module format

Standard

Product or component type

High-speed counter module

Number of channels

2

Addressing requirement

6 input words

6 output words

Data format

65535 dec 16 bits

2147483647 dec 32 bits

Counting input type

Incremental or quadrature

Counting frequency

500000 Hz

Discrete input voltage

< 30 V

Operating mode

Incremental or quadrature discrete input

Input resistance

10 kOhm discrete input

>= 1.8 V differential mode

2...7 V single ended mode 12 V DC at state off

13...24 V single ended mode 24 V DC at state on

0 V single ended mode 12 V DC at state on

0...2 V single ended mode 5 V DC at state on

0...11 V single ended mode 24 V DC at state off

Discrete output number

4

Discrete output type

Field Effect Transistor (FET)

Discrete output voltage

0.4 V switch on DC

0 V switch off DC

Load current

0.5 A

Leakage current

<= 0.4 mA state off

Voltage drop

0.4 V state on

Isolation between channels and bus

1780 Vrms for 60 s

Fault type

Loss of output field power

Output short-circuit protection

Blown fuse 2.5 A

Power dissipation

4 + (0.4 x total module load current)

Bus current requirement

650 mA

External power requirement

19.2...30 V

Rack type

Distributed

Local

Remote

Local signalling

2 LED channel status

Marking

CE

Current consumption

<= 1050 mA 24 V DC external power supply
